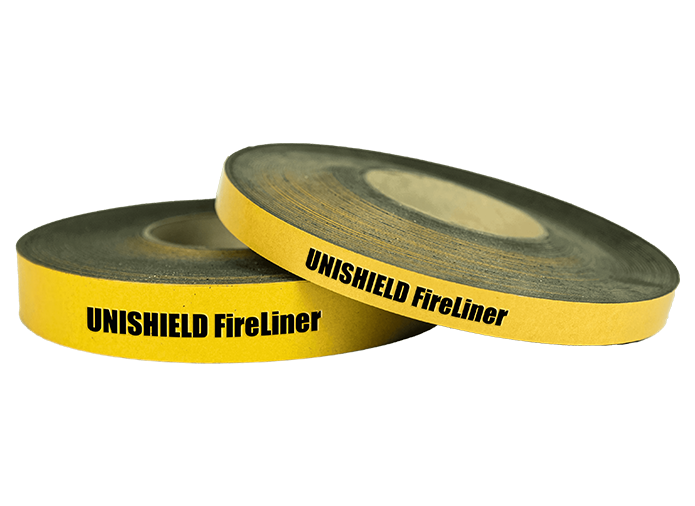

Unishield FireLiner
GENERAL DESCRIPTION
UNISHIELD FireLiner is a high-performance fireproof sealing material designed to prevent the spread of fire, smoke, and toxic gases. When exposed to heat, this tape expands significantly to create a fire-resistant barrier. Its easy-to-cut design allows for custom application to seal gaps around doors, frames, and glass.
APPLICATION
Fire doors and Shutters
Partition walls
Glazing elements, ceilings and Floors
Air grilles and Dampers
Pipe penetrations and Cable transit systems
ADVANTAGES
Easy to customize, Options with or without fibro mesh and self-adhesive.
High-pressure, multi-directional intumescent material, durable, water-resistant, and tear resistant.
APPROVED SIZES
| Product ID | Size (WxTxL) |
|---|---|
| Unishield FireLiner 1002 | 10x2x2100 |
| Unishield FireLiner 1004 | 10x4x2100 |
| Unishield FireLiner 1502 | 15x2x2100 |
| Unishield FireLiner 1504 | 15x4x2100 |
| Unishield FireLiner 2002 | 20x2x2100 |
| Unishield FireLiner 2004 | 20x4x2100 |
| Unishield FireLiner 2502 | 25x2x2100 |
| Unishield FireLiner 3002 | 30x2x2100 |
| Unishield FireLiner 3802 | 38x2x2100 |
| Unishield FireLiner 4002 | 40x2x2100 |
| Unishield FireLiner 5002 | 50x2x2100 |
| Unishield FireLiner 5302 | 53x2x2100 |
| Unishield FireLiner 6002 | 60x2x2100 |
| Unishield FireLiner 6402 | 64x2x2100 |
DENSITY
Approx. 1.25 g/cm3³ to 1.35 g/cm3
EXPANSION FACTOR
Up to 15-fold its original thickness
EXPANSION TEMPERATURE
Starting from 200°
EXPANSION PRESSURE
Start Approx. 0.5 N/mm2
Applied Standards
Testing Labs
